PDN Tester for AMD SP5 Sockets

Features　　

TK-AM501 supports SP5 socket, Infrastructure A – E

TK-AM502 supports SP5 socket, Infrastructure A – G

SP5 FFED* no need for separate back plate

Only One FFED needed (minimal SP5 socket insertions)

Supports Continuous AC and DC Testing

Up to 10 times faster test time with automated test suites**

Automatic PDF Report Generation

Accurate to 1%

Approved by AMD

Works with any SP5 cooling solution

Telemetry reporting of SVI3

Additional SVI 3 debug SW Applications

Includes two SVI3 (up to 50MHz) MasterBlasters

Save, file share and recall of waveforms

Save, file share and recall of test vectors

Q1 2023: CSV export of wave form data, API, 3D Sweep

* FFED (Form Factor Equivalent Device)

** Compared to SDLE

Availability

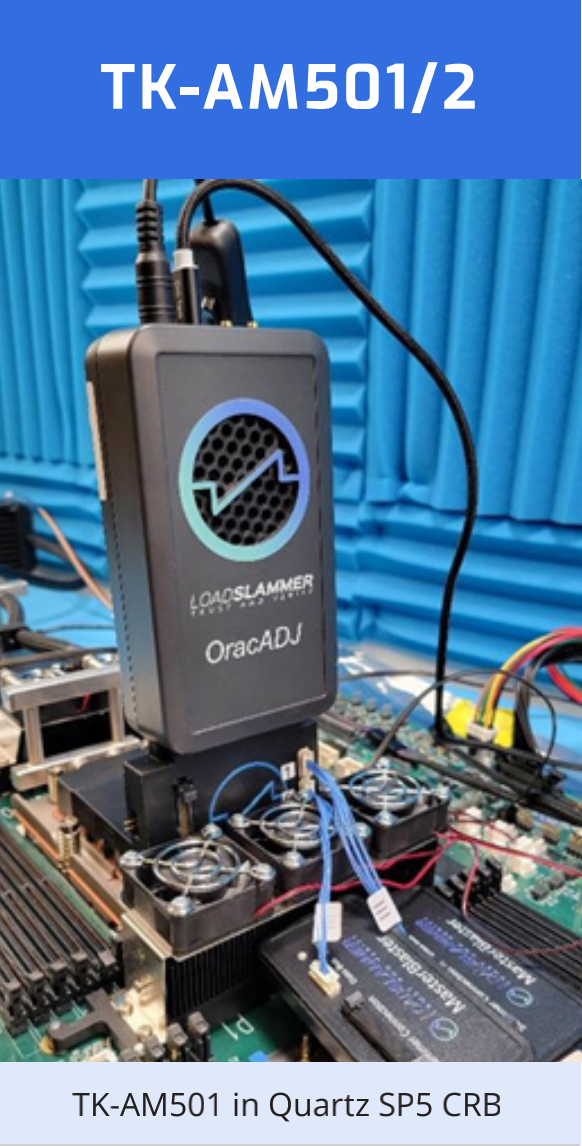

TK-AM501 for AMD SP5 socket

Infrastructure A - E

TK-AM501-CS

with cooling solution optional

TK-AM502 for AMD SP5+ socket

Infrastructure A - G (Q1 2023)

TK-AM502-CS

with cooling solution optional
